Gantrail Resilient Pad

Gantrail Resilient Pad
Gantrail Resilient Pad
Product Code : GRP-01
Product Description

Our company is a reliable manufacturer, importer and exporter of Gantrail Resilient Pad, which is manufactured for special installations in the areas where rails are fixed on sole plates. The back and front lips are placed onto the sole plate to avoid the displacement of pad, which is reduced to 5mm lower than the diameter of rail bottom flange. This resilient pad is offered in different sizes to to chose the appropriate place for conventional wheel load. The offered Gantrail Resilient Pad is fabricated from durable, wear resistant thermoplastic, which is known for its elastomeric properties. Our pad is admired by customers for its excellent resistance against grease, oil and ultraviolet light.

Features:

  • When utilized in concurrence with adjustable gantral clips, this pad significantly decreases the stress in the concrete, rail and grout beneath the sole plate.
  • It provides the balanced distribution of wheel loads in the supporting structure.
  • This component aids in small movement of the rail to ensure its conformation with crane wheel.
  • Increases bearing, axle, rail and wheel life
  • Safeguard the crane mechanisms.
  • Corrosion and wear resistant

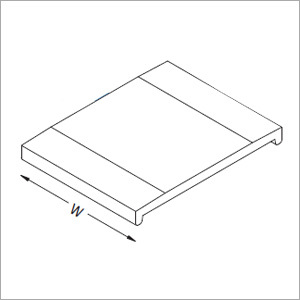

The width of the soleplate should match ‘L’ dimension

PART NO.

L mm

W mm

MK2 – 110

110

Rail foot width less than 5mm

MK2 – 120

120

MK2 – 165

165

MK2 – 220

220

MK2 – 250

250

MK2 – 320

320

Material

EVA copolymer

Temperature range

-25° to +75°C

Recommended maximum

compressive stress

(Compressive stress is installation related

and should be reduced above 50°C)

10 N/mm2

Tensile strength

(ISO R 527) 16 MPa

Elastic modulus

(ISO R 527) 100 MPa

Elongation at break

(ISO R 527) 750%

Shore hardness

(ISO 868 A scale) 95
